ECUT 1050

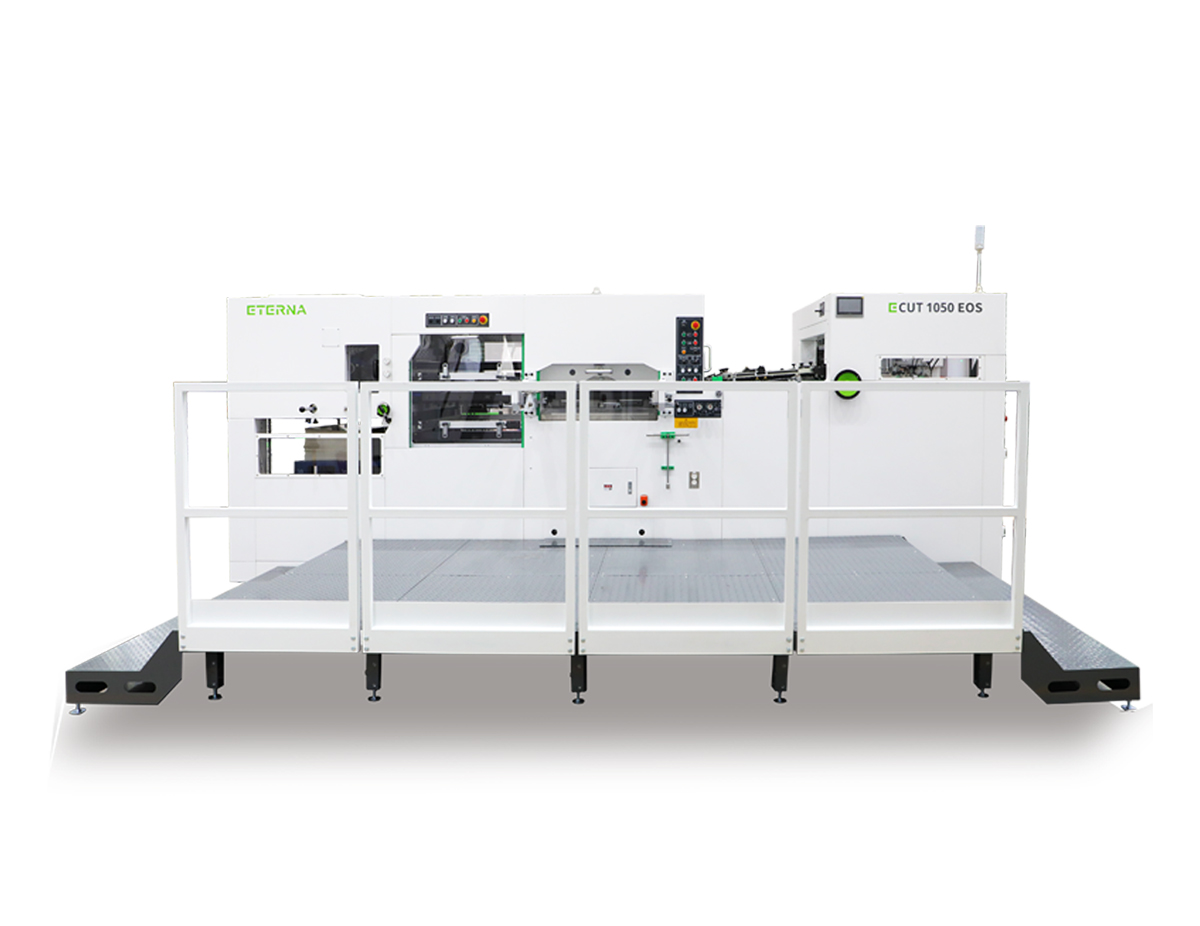

ECUT 1050 EVO
Automatic die-cutter with stripping station.
High performance, smooth running, low noise level, high safety features and easy to operate. A fully automatic non-stop feeder and pre loading capabilities to boost productivity.
• Maximum paper size: 1050 x 750 mm
• Minimum paper size: 400 x 360 mm
• Maximum cutting force: 300 tons
• Maximum mechanical speed: 7500 revolutions per hour
ECUT 1050|H|E|EH
Automatic die-cutter with stripping station.
High performance, smooth running, low noise level, high safety features and easy to operate. A fully automatic non-stop feeder and pre loading capabilities to boost productivity.
• Stock Range: Cardboard: 80-600 g/m²
• Corrugated board: thickness ≤ 4mm
• Max. Sheet Size: 1050 × 750 mm
• Min. Sheet Size: 400 × 360 mm
• Max. Mechanical speed: 7500 s/h
• Max. Cutting Pressure: 300 T
ECUT 1060
ECUT 1060 EVO
Automatic die-cutter with stripping station.
High performance, smooth running, low noise level, high safety features and easy to operate. A fully automatic non-stop feeder and preloading capabilities to boost productivity.
• Max. Sheet Size: 1060 mm x 760 mm
• Min. Sheet Size: 400 mm x 360 mm
• Max. Mechanical Speed: 7500 cycles/hour
• Max. Cutting Pressure: 300 tons
• Max. Cutting Size: 1045 mm × 745 mm
ECUT 1060 E
Automatic die-cutter with stripping station.
High performance, smooth running, low noise level, high safety features and easy to operate. A fully automatic non-stop feeder and preloading capabilities to boost productivity.
• Stock Range: Cardboard: 80~2000 g/m²
• Corrugated board: thickness≤4mm
• Max. Sheet Size: 1060 × 760 mm
• Min. Sheet Size: 400 × 360 mm
• Max. Mechanical speed: 7500 s/h
ECUT 1060 ELITE
ECUT 1060 ELITE E
Automatic die-cutter with stripping station.
Highly compatible (interchangeable with Group tooling) and flexible; 10.4“ colour touch screen operation panel, more direct and operator-friendly.
• Stock Range : Cardboard: 90~1000 g/m²
• Corrugated board: Up to 4mm
• Max. Sheet Size : 1060 × 760 mm
• Min. Sheet Size : 400 × 350 mm
• Max. Mechanical speed : 8000 s/h
ECUT 1060 ELITE ER
Automatic die-cutter with blanking and stripping capabilities.
Suitable products include; Micro-flute as well as complex jobs with difficult layout; High volume, high demand packaging like tobacco, pharmaceutical and cosmetic packaging, Certain products with rigid hygiene safety requirement such as food and pharma packaging, Products that are sensitive to surface scratches, Long and medium run products.
• Stock Range : Cardboard: 90~1000 g/m²
• Corrugated board: Up to 4mm
• Max. Sheet Size : 1060 × 760 mm
• Min. Sheet Size : 400 × 350 mm
• Max. Mechanical speed : 7500 s/h
